Electric Forklift Truck RX 60 3.5 – 5.0 t

The peak performer

  • Load capacity 5000 kg
  • Rated lift 7180 mm
  • Speed 20 km/h

Everything. Except emissions.

Get ready for a superior electric forklift truck.

For an energy-packed peak performer in the weight class of 3.5 to 5.0 tonnes. The RX 60-35/50 handles any challenge and reveals its abilities from the very first second: lifting, accelerating and moving in top time. You will experience an incredibly intuitive interaction with the vehicle while it actively supports you in your work with smart assistance systems. The long battery life and the possibility to recharge quickly and on-site provide you with uncompromising availability. The charger can be fitted directly on board if required, but you will need it surprisingly seldom, because for all its power, the RX 60 consumes less energy than other vehicles in its class. Take advantage of the wide range of variants and equipment and configure the perfect truck for your application.

Let yourself be inspired by the productivity of your customised high performance forklift truck. Because the RX 60 can do everything - except emissions.

ΝΕΟ
Μη δεσμευτική προσφορά
ΕΝΟΙΚΙΑΣΗ
Μη δεσμευτική προσφορά ενοικίασης
ΧΡΗΣΙΜΟΠΟΙΗΜΕΝΟ
Τα μεταχειρισμένα φορτηγά μας προσφέρουν

Request to: RX 60 3.5 – 5.0 t

Παρακαλούμε συμπληρώστε την παρακάτω φόρμα. Θα επικοινωνήσουμε μαζί σας το συντομότερο δυνατό.

Χαιρετισμός*
Αυτός ο ιστότοπος προστατεύεται από το Friendly Captcha και το Φιλική πολιτική απορρήτου Captcha ισχύει.
Maximum performance in series

Maximum performance in series

Take advantage of the outstanding handling power of the RX 60 to get your goods to their destination even faster! The truck lifts and lowers in record time, accelerates to over 20 km/h and masters gradients and ramps like no other forklift truck in its class. Be electrified - by a performance that is second to none.

Start up and move loads over a distance of 15 metres? In 5.7 seconds! →
Lifts faster! →
324 tons in 3,600 seconds →

Start up and move loads over a distance of 15 metres? In 5.7 seconds!

Get up and going: the electric motor of the RX 60, bursting with power, accelerates quickly. So fast that the first 15 metres can be covered from a standing start in just 5.7 seconds - with load.

Lifts faster!

Lifts faster!

Up and down, up and down, up and down...Whatever needs to be done, the new RX 60 saves valuable seconds. In one second it lifts or lowers loads by half a metre.

324 tons in 3,600 seconds

324 tons in 3,600 seconds

Move more goods in less time: With the new RX 60 you can transport 324 tonnes. Per hour.

Lasts longer, consumes less

Lasts longer, consumes less

The RX 60 delivers top-level performance. How much energy does it take? Less! The intralogistics top performer combines minimum energy consumption with maximum performance and can manage up to two complete shifts without a break for recharging. Li-ion batteries for interim charging even allow round-the-clock operation. At the same time the RX 60 is so easy to maintain that visits by a STILL service technician become a quick pit stop.

Endurance specialist →
Energy non-consumer →

Endurance specialist

Rely on looooong runtimes with only one battery charge. Or directly use a lithium-ion battery and short interim charging for round-the-clock operation. And thanks to the optional onboard charger, you can charge the vehicle wherever there is a power socket available.

Energy non-consumer

Energy non-consumer

Maximum performance, minimum consumption: The RX 60 consumes less energy: A minimum of 8.7 7 kW/ is sufficient for goods handled in record time.

When operator and vehicle become one

When operator and vehicle become one

Take a seat in the great new driver's workstation. Experience what it feels like to be in full control at all times. In the RX 60, an outstanding field of vision meets intuitively placed controls and smart assistance systems. Experience the exceptional interaction with the vehicle and complete your tasks better, faster and safer than ever before.

The ergonomic experience →
A vehicle that will make you better →
Take a seat – and start believing your eyes →

The ergonomic experience

Step in through the wide vehicle access, notice the cleverly positioned handholds, see the outstanding all-round vision and set up the controls to suit your needs. This is how ergonomics works.

A vehicle that will make you better

A vehicle that will make you better

Digitally guided pre-shift check before the start. Quick start as soon as you sit down. Overload protection in case you lift too much too high. Automatic speed adjustment when you take a turn. The RX 60 helps you to do your best.

Take a seat – and start believing your eyes

Take a seat – and start believing your eyes

Welcome to your great driver's workstation! Every operating element is positioned exactly where it feels right and with the smart STILL Easy Control on-board computer you have direct access to all functions and performance data.


The RX 60 3.5 – 5.0 t in detail

The "Simply Efficent" factors: Performance attributes as a measure of economic efficiency

Simply easy

Intuitive handling:
Standard, easy-to-use operating concept across the whole RX product line

Efficiency-enhancing:
Easy entry into a highly ergonomic driver’s cab

STILL Easy Control on-board computer:
All relevant information at a glance and performance functions just a click away

Ultra-fast:
Easy-to-operate lateral battery change

Simply powerful

Intralogistics powerhouse:
Handling performance at the highest level in its class

Performance boost:
Sprint mode for peak performance at the touch of a button

Optimum energy efficiency:
Exceptionally long range with each battery charge

Lift and accelerate faster than ever: Available as a high performance variant with extra-powerful drive and lift motors

Intelligent support:
Traction control and other assistance functions

Ready at all times:
Optional STILL lithium-ion technology for maximum availability

Simply safe

Safe and precise handling:
High-precision hydraulics and agile driving dynamics

Safe entry:
Large handle, anti-slip rubber mat and wide step

Optimal panoramic view:
Slim mast and extra-large windows

Systematic safety:
Optional pre-shift check on the display to help with the daily safety inspection

Safety for every application:
Wide range of additional equipment options – from a direction indicator on the display to the Safety Light 4Plus safety lighting, as well as Curve Speed Control for automatic speed reduction when cornering

Simply flexible

Flexible control options:
Multi-lever, mini-lever, Fingertip or Joystick 4Plus

Adjustable performance dynamics:
Parameters such as driving and lifting speed can be adjusted to personal preferences at the touch of a button

Operating power tailored to your specifications:
Wide variety of equipment options for every application

Simply connected

Optimum networking:
Optional interface for integration into fleet management software such as STILL neXXt fleet

Controlled use:
Optional access control protects against incorrect operation

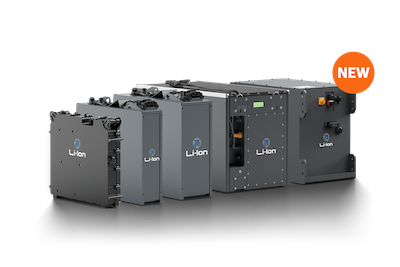

STILL Li-Ion Technology inside

The perfectly harmonised power system for reducing operating costs and increased truck availability.

More about STILL Li-Ion Technology

Applications

Made for indoor AND outdoor use

Made for indoor AND outdoor use

Be it in production supply or in the outside warehouse: The RX 60-35/50 excels with its productivity right where it is needed. And even if it gets wet, it won't leave you out in the rain.

Stored on the spot

Stored on the spot

It has never been easier to store goods with pinpoint accuracy. The sensitive hydraulics of the vehicle guarantee rapid, precise and smooth movements. And thanks to Dynamic Load Control, you always have the current load weight and maximum lifting height in view.

Heavyweight made easy

Heavyweight made easy

The RX 60 makes handling loads of up to five tonnes incredibly smooth. Every command is translated into smooth, precise movements that you can control instantaneously

Designed for the tightest spaces

Designed for the tightest spaces

Thanks to its compact dimensions, the RX 60-35/50 can be navigated safely by you even through the narrowest of working aisles. And the small turning radius allows the warehouse to be compacted even further.

A driver's workplace to inspire you

A driver's workplace to inspire you

Perfectly arranged controls, the smart STILL Easy Control on-board computer and an unrivalled all-round vision: The driver's workplace of the RX 60 will inspire you every second.

Endurance runner

Endurance runner

43,200 seconds, 720 minutes or 12 hours: That's how long it takes the RX 60 with the largest battery before it needs to recharge the next time. With lithium-ion technology and short breaks for interim charging, the vehicle is even ready for use around the clock - and if desired, the charger can be fitted directly on board.


Reviews

"Our long-standing partner, STILL, involved us in the field testing of the new RX 60 forklift truck. Our test drivers experienced the new dual motor drive to be extremely comfortable providing a stable drive feel. The colleagues highlighted the automatic parking brake, which closes automatically when the driver leaves the truck and opens when the accelerator pedal is pressed.

The opportunity to field-test the new truck is another example of our extremely positive cooperation with STILL. Our cooperation has always been characterised by the high availability, the partnership and cooperative exchange as well as the sensible way in which the STILL service team worked".


Christian Gottschalck, Area Manager Assistant Internal Logistics,
Hassia Mineralquellen GmbH & Co. KG


Media Centre

{{ filteredVideos.length }} Videos

Model Overview

Model
Maximum capacity (kg)
Maximum lift height (mm)
Travel speed (km/h)
Battery voltage (V)
RX 60-35/600 / Li-Ion 3.500 7.180 20 80
RX 60-40 / Li-Ion 4.000 7.180 20 80
RX 60-40/600 / Li-Ion 4.000 7.180 20 80
RX 60-45 / Li-Ion 4.500 7.180 20 80
RX 60-45/600 / Li-Ion 4.500 7.180 20 80
RX 60-50 / Li-Ion 4.990 7.180 20 80
RX 60-50/600 / Li-Ion 4.990 6.880 19 80

Downloads

  • Data Sheet RX 60 3.5 - 5.0 t PDF, 13 MB Download
  • Operating instruction RX 60 3,5 - 5,0 t PDF, 80 MB Download
  • Manual RX 60 3.5 - 5.0 t Explosion protection PDF, 71 MB Download

The document provided for download is the updated version of the operating instructions for the standard truck. It does not include descriptions of customer options (Customer Option). For a concrete truck, please request the respective specific manual according to the serial number and the year of production from the STILL spare parts service.
